Bathroom waterproofing membranes are one of the most important — and most misunderstood — parts of modern bathroom construction. Most homeowners focus on visible finishes like tiles, vanities, and fixtures, but the real protection against leaks and moisture damage actually happens underneath the surface.
In my experience working with bathroom renovation and waterproofing projects, many expensive water damage problems happen because homeowners either used the wrong membrane system or skipped waterproofing entirely in certain areas.
A properly installed waterproofing membrane acts as a hidden barrier that prevents water from penetrating into walls, floors, and structural materials. Without it, even the highest-quality tile installation can eventually fail.
This guide explains what bathroom waterproofing membranes are, how they work, the different types available, and which option makes the most sense for different bathroom situations.
Quick Answer: What Is a Bathroom Waterproofing Membrane?
A bathroom waterproofing membrane is a protective waterproof layer installed beneath tiles and surface finishes to stop water from penetrating into the structure underneath.
Its main job is to:
- Prevent water leaks
- Protect walls and floors
- Reduce mold growth
- Extend bathroom lifespan
- Prevent expensive structural repairs
Why Bathroom Waterproofing Membranes Matter
Bathrooms constantly deal with:
- Water splashes
- Steam and humidity
- Standing water
- Temperature changes
- Cleaning chemicals
Tiles and grout alone are not fully waterproof. Over time, moisture slowly penetrates grout joints and reaches the substrate underneath.
The waterproofing membrane is what actually protects:
- Concrete slabs
- Plywood subfloors
- Drywall
- Framing structures
- Ceilings below
Without a proper membrane system, hidden water damage can continue for years before becoming visible.

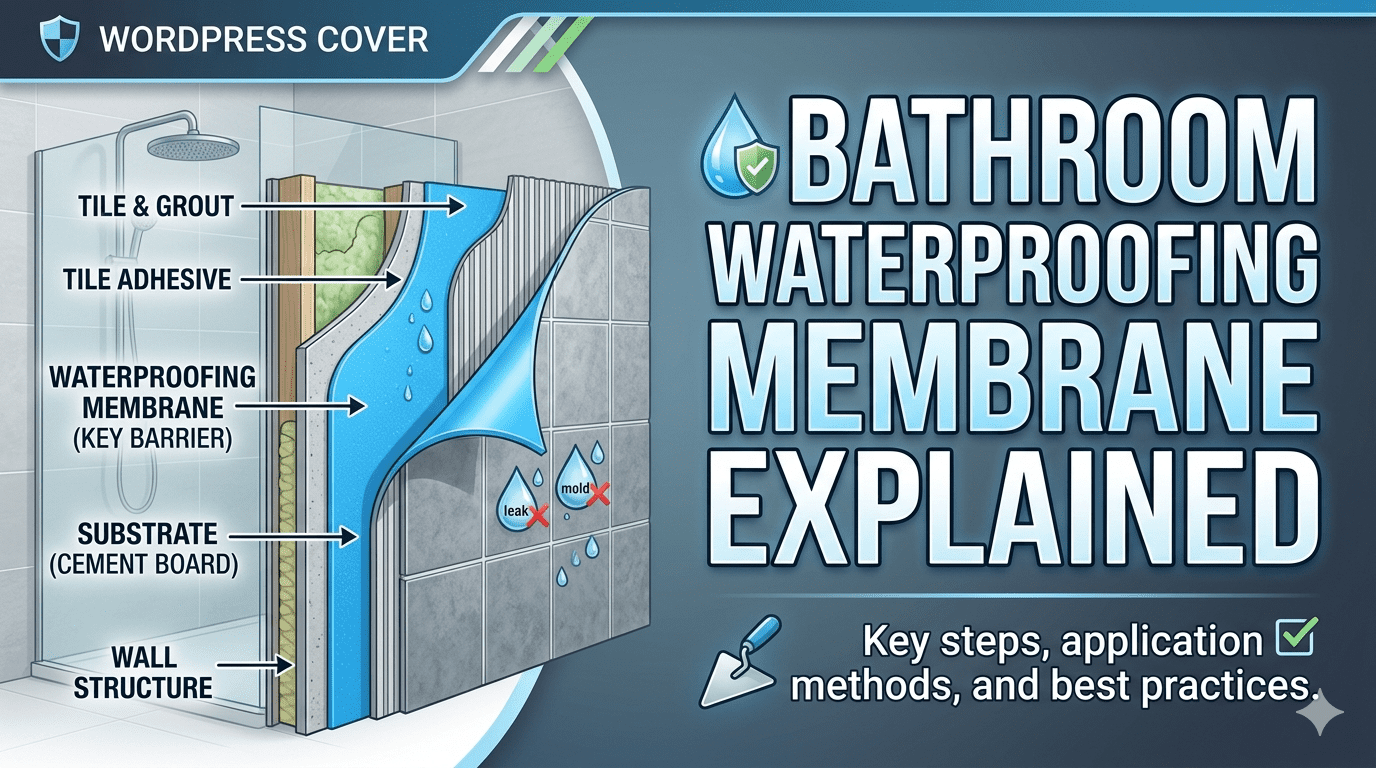

How Waterproofing Membranes Work
The membrane creates a continuous waterproof barrier beneath the finished tile layer.
Instead of allowing moisture to soak into the structure, the membrane redirects water safely toward drains and prevents penetration into vulnerable materials.
The most critical waterproofing areas include:
- Shower floors
- Bathroom floors
- Wall-floor corners
- Pipe penetrations
- Drain connections
- Bathtub surrounds
Main Types of Bathroom Waterproofing Membranes
1. Liquid Waterproofing Membrane
Liquid membranes are one of the most popular waterproofing options for residential bathrooms.
They are applied using:
- Rollers
- Brushes
- Trowels
Once cured, the liquid forms a seamless waterproof coating.
Advantages
- Easy application
- Good flexibility
- Seamless waterproof coverage
- Ideal for irregular surfaces
- DIY-friendly
Disadvantages
- Requires proper thickness control
- Drying time matters
- Poor application can create weak spots
2. Sheet Membrane Waterproofing
Sheet membranes are pre-manufactured waterproof sheets installed beneath tiles.
These systems are commonly used in:
- Luxury bathrooms
- Commercial bathrooms
- High-end shower systems
- Professional renovations
Advantages
- Excellent waterproof reliability
- Consistent thickness
- Long lifespan
- Highly durable
Disadvantages
- Higher installation cost
- More difficult for beginners
- Requires careful seam sealing
3. Cementitious Waterproofing
This type uses cement-based waterproof compounds.
It’s commonly used in:
- Budget renovations
- Concrete bathrooms
- Basic waterproofing systems
Advantages
- Affordable
- Simple application
- Good for stable concrete surfaces
Disadvantages
- Less flexible over time
- Can crack with movement
- Lower long-term durability
4. Polyurethane Waterproof Membrane
Polyurethane systems are premium waterproofing products known for excellent flexibility.
Advantages
- Outstanding flexibility
- Strong crack resistance
- Very durable
- Excellent long-term protection
Disadvantages
- Higher material cost
- Requires professional installation
Waterproofing Membrane Comparison Table
| Membrane Type | Cost | Installation Difficulty | Maintenance | Advantages | Disadvantages |
|---|---|---|---|---|---|
| Liquid Membrane | Medium | Easy-Moderate | Low | Flexible and seamless | Thickness must be controlled |
| Sheet Membrane | High | Moderate-Difficult | Low | Very durable and reliable | Higher labor cost |
| Cementitious | Low | Easy | Medium | Affordable option | Less flexible over time |
| Polyurethane | High | Moderate | Low | Excellent crack resistance | Expensive materials |
Where Waterproofing Membranes Should Be Installed
One of the biggest waterproofing mistakes homeowners make is only waterproofing the shower area.
In reality, moisture spreads throughout the bathroom floor over time.
Professional waterproofing should include:
- Entire bathroom floor
- Shower walls
- Wet zone walls
- Drain areas
- Wall-floor joints
- Pipe penetrations
In apartment buildings especially, full-floor waterproofing is strongly recommended.
Real-World Waterproofing Failure Examples
Luxury Bathroom Renovation
I once inspected a luxury bathroom with expensive marble tiles where water damage had already rotted part of the plywood subfloor underneath.
The issue wasn’t the tile quality — the contractor skipped proper waterproof membrane installation around the drain area.
Small Apartment Bathroom
In compact bathrooms, poor ventilation combined with weak waterproofing often causes hidden mold behind walls within just a few years.
Old Home Bathroom
Older homes commonly have outdated waterproofing systems that become brittle and crack over time.
How Long Does Waterproofing Membrane Last?
Most properly installed waterproof membranes last:
- 10–15 years for basic systems
- 15–25 years for premium systems
- Longer with proper ventilation and maintenance
However, poor installation can shorten lifespan dramatically.
Signs Your Waterproofing Membrane May Be Failing
- Loose tiles
- Persistent mold
- Peeling paint
- Water stains downstairs
- Musty smells
- Cracked grout
- Soft or swollen flooring
Choosing the Right Waterproofing Membrane
Best for DIY Homeowners
Liquid waterproof membranes are usually the easiest and most forgiving for DIY installations.
Best for Long-Term Durability
Sheet membranes and polyurethane systems provide the highest long-term reliability.
Best Budget Option
Cementitious waterproofing remains one of the most affordable solutions for simple bathroom renovations.
Best for Apartments
Full-floor waterproof sheet membrane systems offer the best protection against leaks affecting neighboring units.
Professional Waterproofing Tips
- Never skip corner reinforcement tape
- Always waterproof around drains carefully
- Allow proper curing time
- Perform flood testing before tiling
- Use quality sealants around fixtures
- Maintain proper bathroom ventilation
Most Common Waterproofing Membrane Mistakes
- Applying membrane too thin
- Skipping primer
- Waterproofing only part of the bathroom
- Ignoring floor slope issues
- Tiling before curing finishes
- Poor drain sealing
Frequently Asked Questions
1. Are bathroom tiles waterproof by themselves?
No. Tiles and grout are water-resistant, but not completely waterproof.
2. Which waterproofing membrane is best?
Sheet membranes offer the highest reliability, while liquid membranes are easier for DIY projects.
3. Can I waterproof over existing tiles?
Some systems allow it, but proper preparation and adhesion testing are critical.
4. How thick should a waterproof membrane be?
It depends on the product system, but manufacturers usually specify required dry film thickness.
5. Is bathroom waterproofing required by building codes?
In many regions, yes. Waterproofing is often mandatory for wet areas.
Related Articles
- 2026 Bathroom Waterproofing Guide
- How to Waterproof a Bathroom Floor Properly
- 7 Signs Your Bathroom Waterproofing Has Failed
- Most Common Bathroom Waterproofing Mistakes
- Bathroom Leak Repair Without Removing Tiles
External reference: EPA Mold and Moisture Guide
Conclusion
Bathroom waterproofing membranes are one of the most critical hidden systems in any bathroom. While homeowners often focus on tiles and design finishes, the waterproof membrane underneath is what truly protects the bathroom structure from moisture damage.
Choosing the right membrane system depends on your budget, bathroom type, long-term durability goals, and installation experience. Whether you’re planning a DIY renovation or hiring professionals, understanding how waterproofing membranes work can help you avoid leaks, mold, structural damage, and expensive future repairs.
